520Wh 500W Pure Sine‑Wave Portable Solar Power Station Emergency Backup Power Supply for Camping Home Blackout Medical‑Use

Portable Solar Generator



Exterior

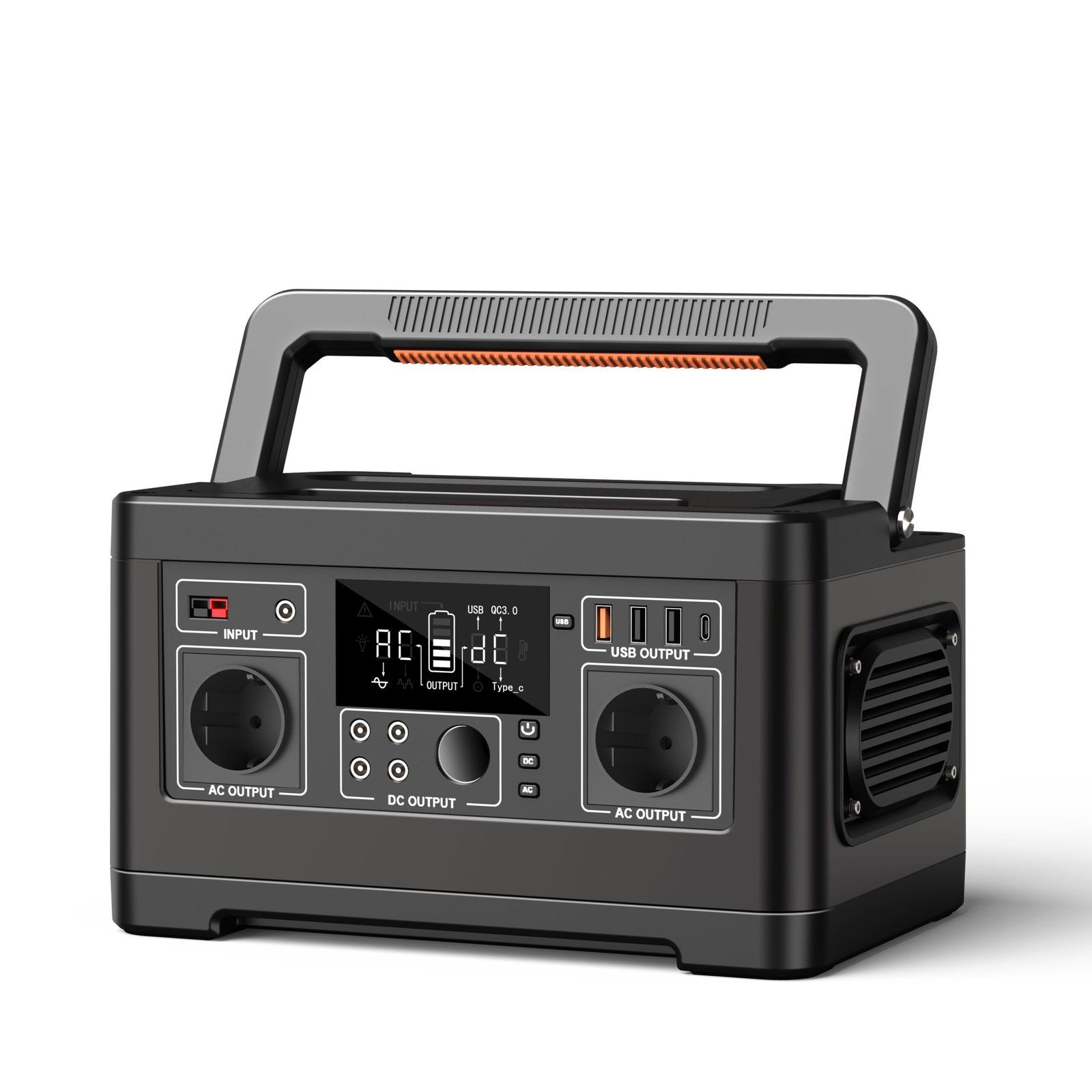

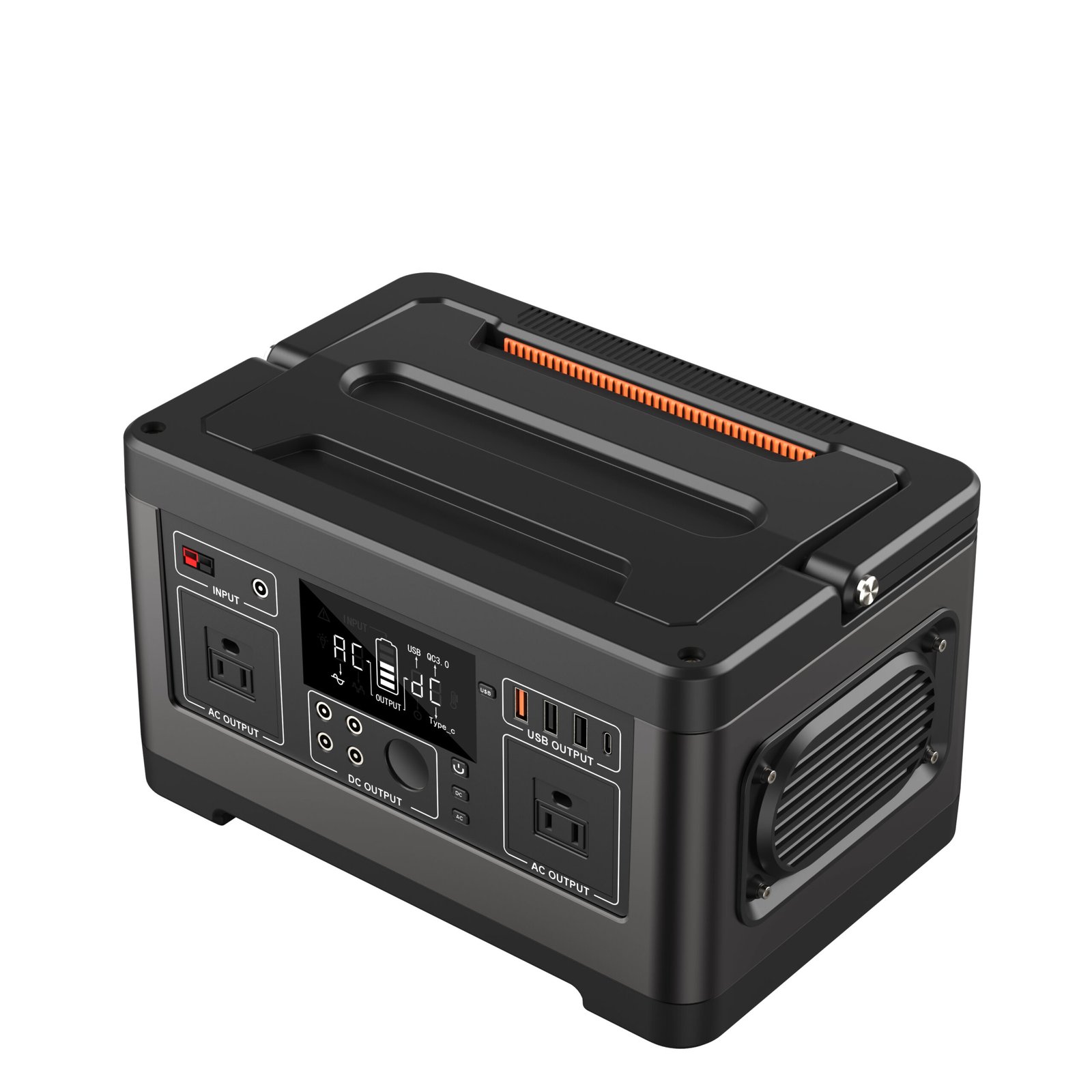

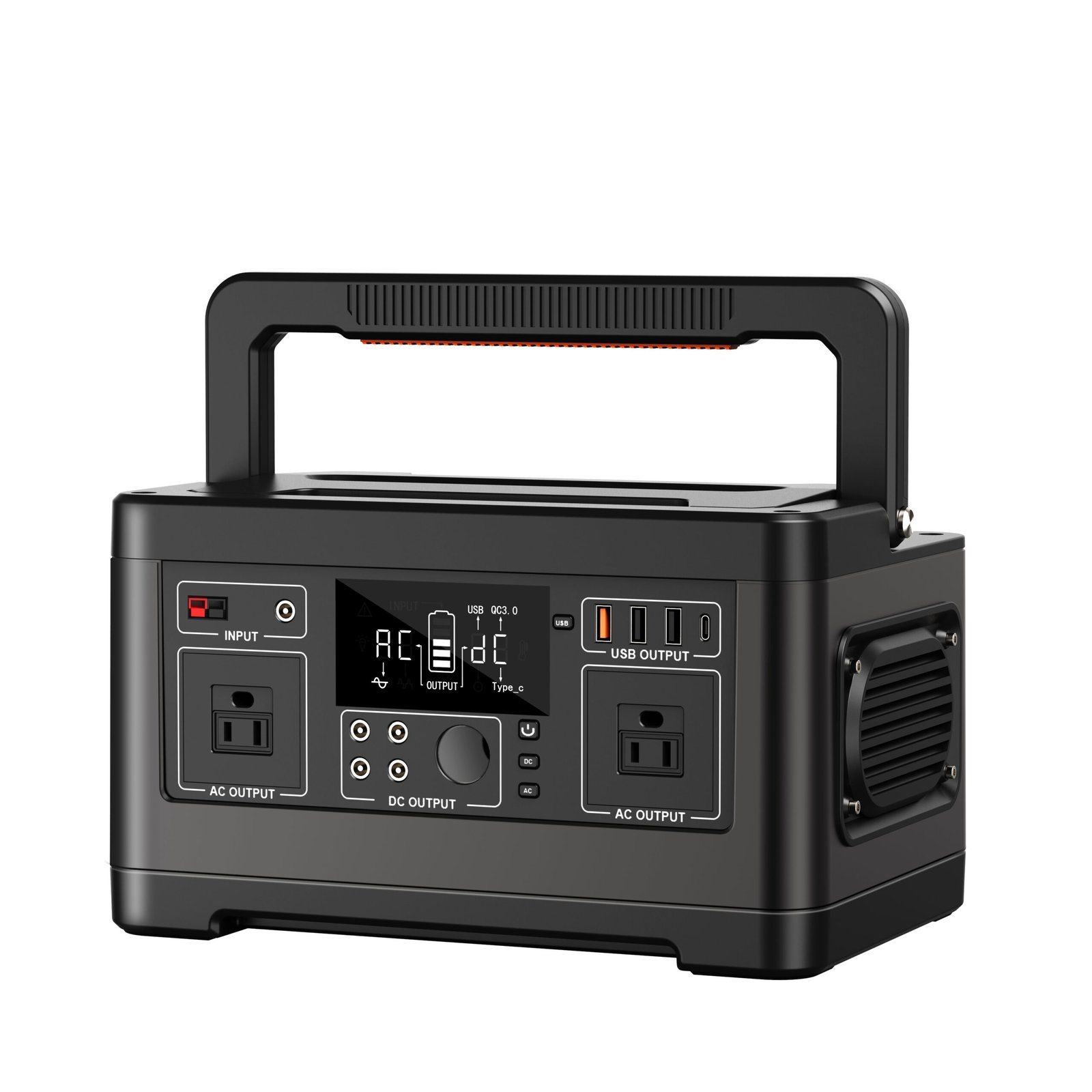

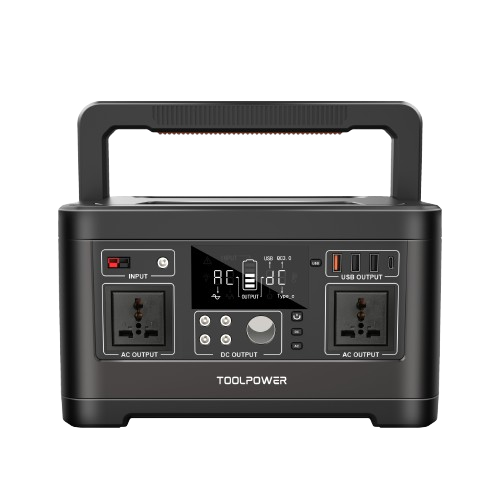

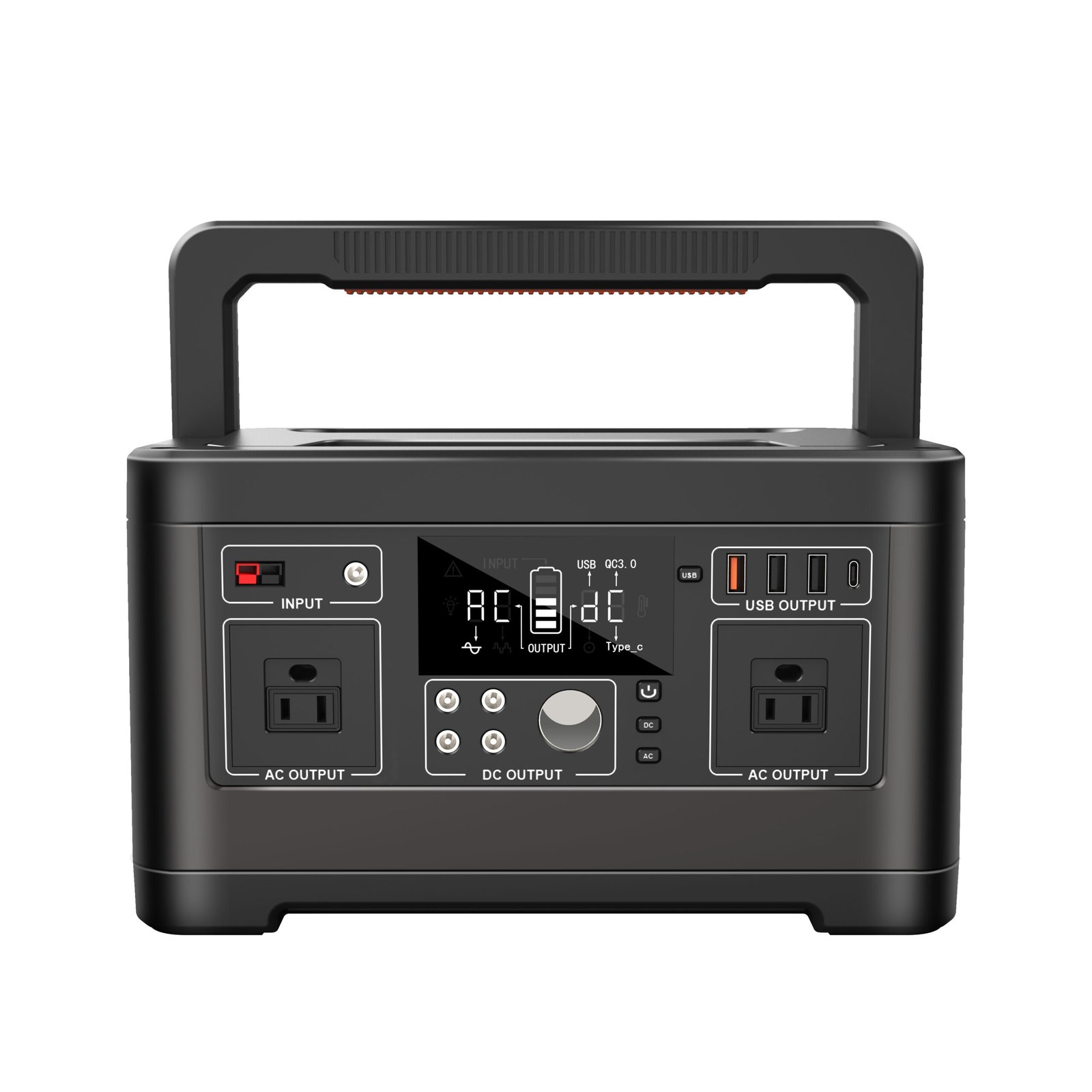

Product Picture: Portable solar generator (product image attached)



General Parameters



Built‑in battery: High‑quality lithium‑ion battery

Battery capacity: 520Wh / 140400mAh, 3.7V

Input recharging: DC15V/6.0A (5521 DC port)

Solar panel charging: DC5521, 13V‑26V/6.0A

Fully Charged Time: 7‑8 hours when charged via DC 15V input



DC output:

1 * USB‑A port 5V‑9V/2A (QC3.0); 2 * USB‑A ports 5V/3.1A

1 * Type‑C port 5V‑9V/2A (QC3.0)

4 * 5521 DC ports 9‑12.6V/10A (maximum total current 12A)

1 * cigarette‑lighter adapter port



AC output: 2 pure sine‑wave AC outlets

AC continuous output power: 500W

Operating temperature: ‑10℃‑40℃



Built‑in Safety Protection Functions:

1. Short‑circuit protection
2. Over‑current protection
3. Over‑voltage protection
4. Under‑voltage protection
5. Over‑load protection
6. Over‑temperature protection



Package Included:

1 x Portable solar generator power station

1 x Power adapter

1 x AC charging cable

1 x User manual



Certifications: PSE, FCC, CE, ROHS, MSDS, UN38.3, air‑transport report, marine‑transport report



Adapter Specifications



Output: 15V 6A

DC interface: 5521 port

Shape: Desktop‑style power adapter



Charging Modes



‑ Supports charging via the matched power adapter

‑ Supports solar‑panel charging

‑ Supports car cigarette‑lighter charging



Battery Information



Battery cell model: 18650 lithium‑ion cell

Single‑cell capacity: 2600mAh

Battery pack configuration: 3‑series, 18‑parallel connection

Single‑cell voltage: 3.7V

Battery pack nominal voltage: 11.1V

Charge‑discharge cycle life: More than 1000 cycles, retaining around 80% of original capacity

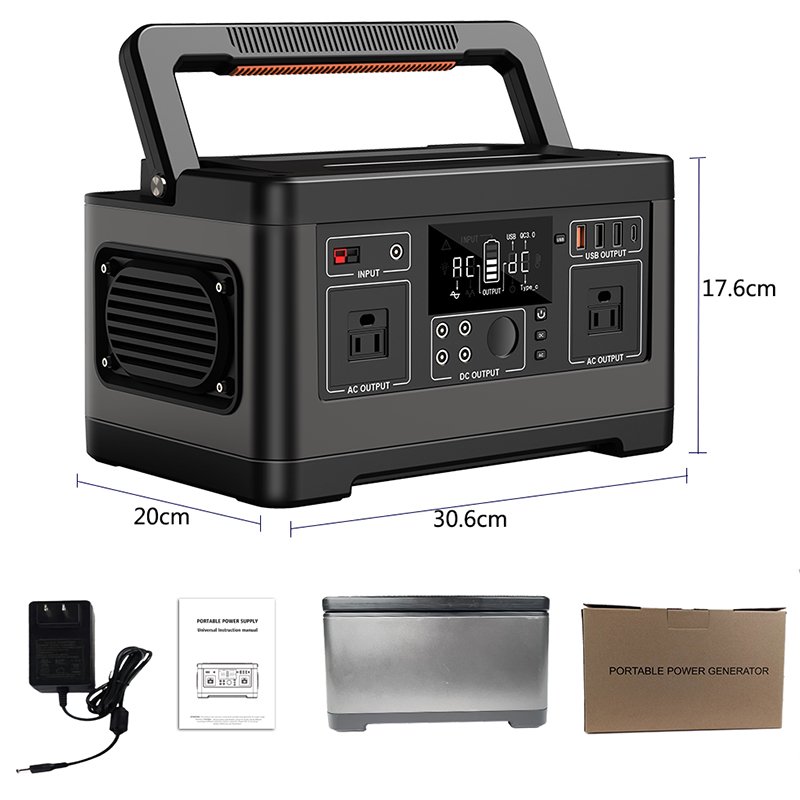

Structural Information



Product dimensions: 306200176 mm

Net weight: About 6.3kg

Housing material: ABS plastic; plastic shell fire‑resistance rating 94‑V0

Custom‑color service: Available, minimum order quantity: 500 pieces



Packing Details



Product packing: Neutral‑pack carrying case

Carrying‑case dimensions: 392268245 mm

Single‑case weight: 8.3kg

Export carton size: 556407270 mm

Quantity per outer carton: 2 PCS/CTN

Carton gross weight: 17.5kg



Application Scenarios



Suitable for power‑outage backup, outdoor operation power supply, night‑market stall electricity, emergency rescue, medical‑device power supply, household energy‑storage and other scenarios.



Delivery Time



Standard production lead‑time: 30 days; negotiable based on actual order requirements.



MOQ



We offer flexible order support according to customers’ actual demands.



Warranty & After‑Sales Service



Warranty period: 12‑month warranty

After‑sales policy:



1. If you have local‑repair capability, we provide free spare parts within the warranty period.



2. If local repair is unavailable, you can return defective products; we will arrange a new replacement together with you next order shipment.
