Portable Solar Generator
Exterior

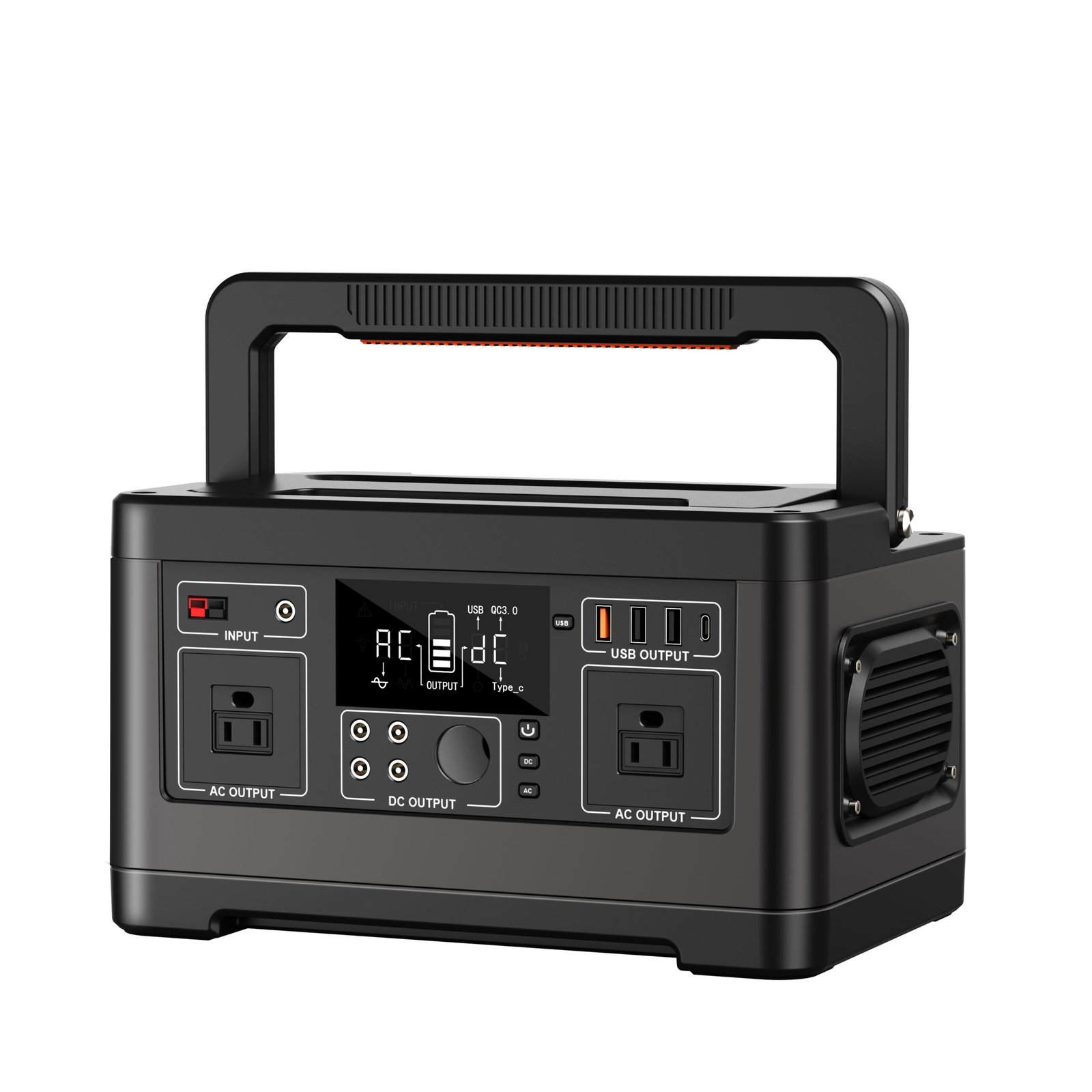

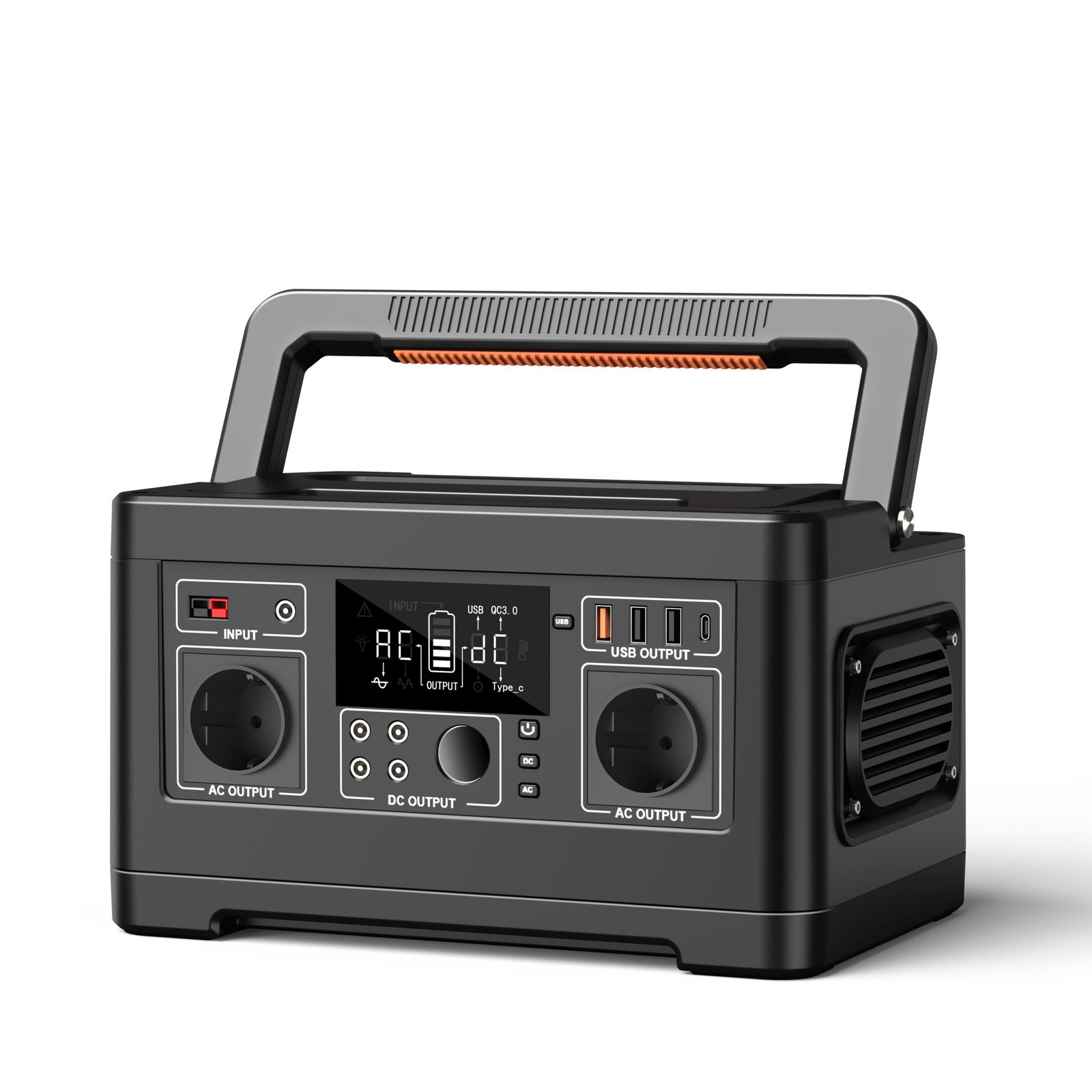

Product Picture: Portable solar generator (product image attached)
General Parameters
Built‑in battery: High‑quality lithium‑ion battery
Battery capacity: 520Wh / 140400mAh, 3.7V
Input recharging: DC15V/6.0A (5521 DC port)
Solar panel charging: DC5521, 13V‑26V/6.0A
Fully Charged Time: 7‑8 hours when charged via DC 15V input
DC output:
1 * USB‑A port 5V‑9V/2A (QC3.0); 2 * USB‑A ports 5V/3.1A
1 * Type‑C port 5V‑9V/2A (QC3.0)
4 * 5521 DC ports 9‑12.6V/10A (maximum total current 12A)
1 * cigarette‑lighter adapter port
AC output: 2 pure sine‑wave AC outlets
AC continuous output power: 500W
Operating temperature: ‑10℃‑40℃
Built‑in Safety Protection Functions:
a. Short‑circuit protection
b. Over‑current protection
c. Over‑voltage protection
d. Under‑voltage protection
e. Over‑load protection
f. Over‑temperature protection
Package Included:
1 x Portable solar generator power station
1 x Power adapter
1 x AC charging cable
1 x User manual
Certifications: PSE, FCC, CE, ROHS, MSDS, UN38.3, air‑transport report, marine‑transport report
Adapter Specifications
Output: 15V 6A
DC interface: 5521 port
Shape: Desktop‑style power adapter
Charging Modes
‑ Supports charging via the matched power adapter
‑ Supports solar‑panel charging
‑ Supports car cigarette‑lighter charging
Battery Information
Battery cell model: 18650 lithium‑ion cell
Single‑cell capacity: 2600mAh
Battery pack configuration: 3‑series, 18‑parallel connection
Single‑cell voltage: 3.7V
Battery pack nominal voltage: 11.1V
Charge‑discharge cycle life: More than 1000 cycles, retaining around 80% of original capacity

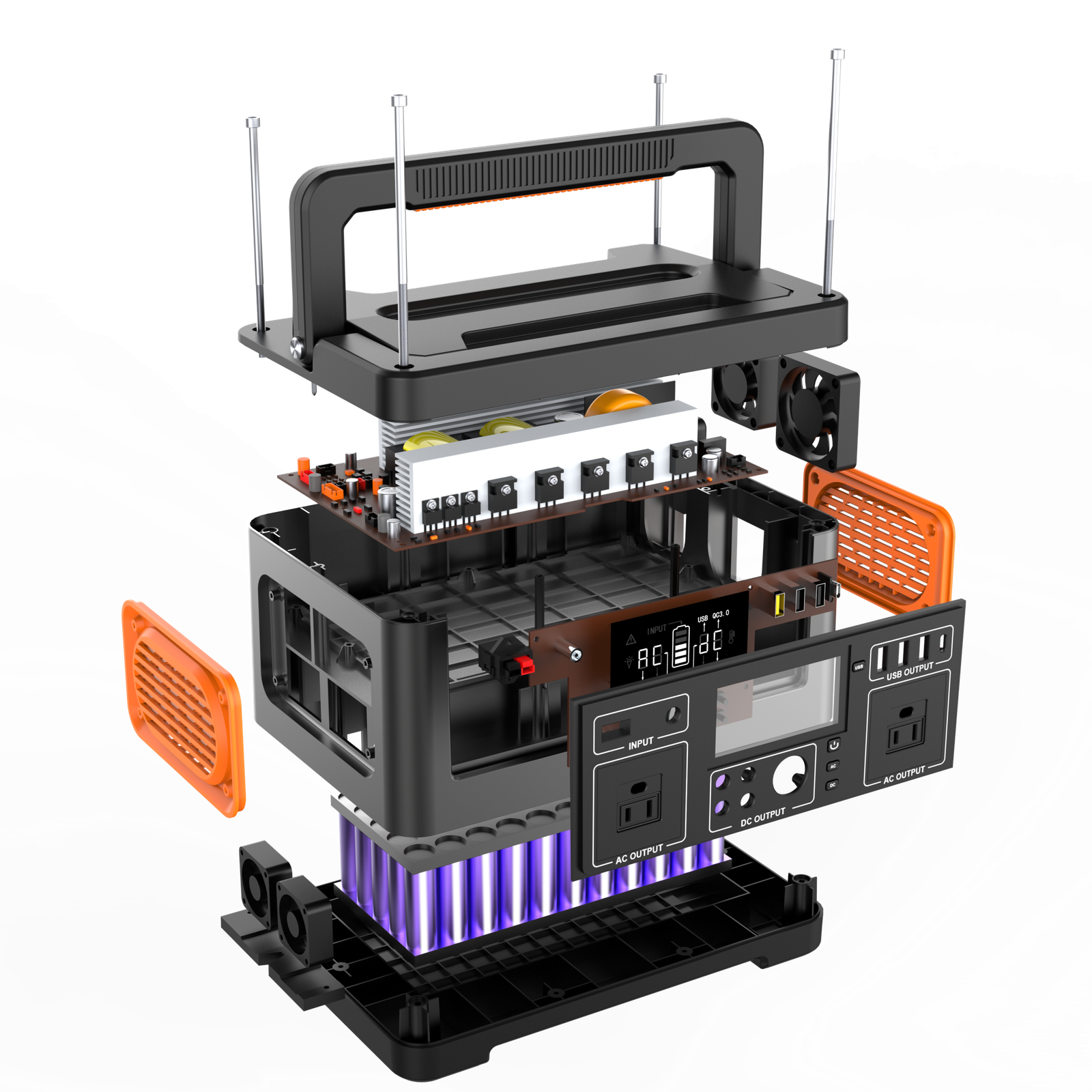

Structural Information

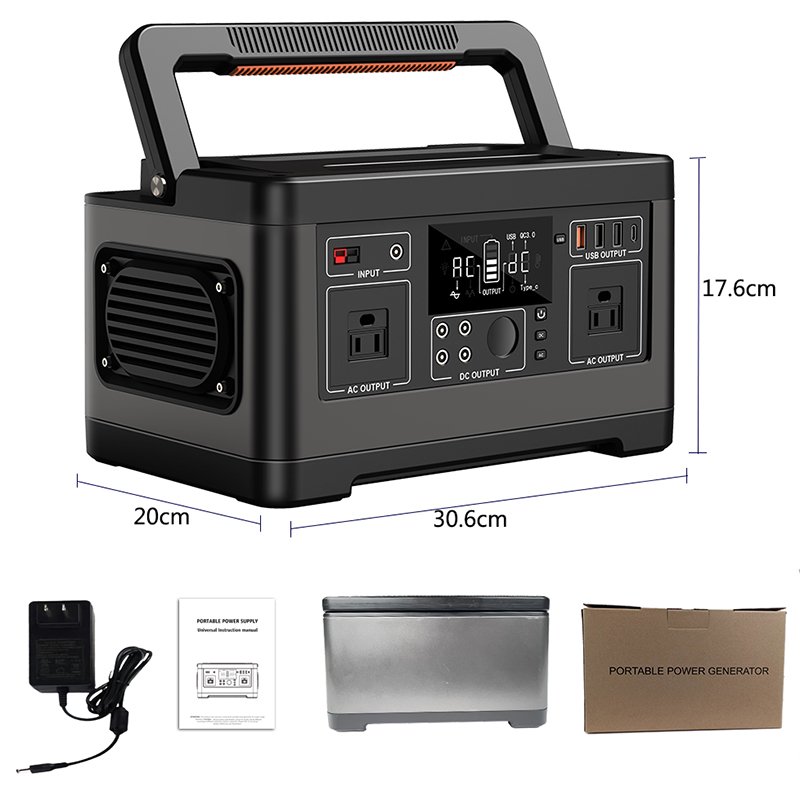

Product dimensions: 306200176 mm
Net weight: About 6.3kg
Housing material: ABS plastic; plastic shell fire‑resistance rating 94‑V0
Custom‑color service: Available, minimum order quantity: 500 pieces
Packing Details
Product packing: Neutral‑pack carrying case
Carrying‑case dimensions: 392268245 mm
Single‑case weight: 8.3kg
Export carton size: 556407270 mm
Quantity per outer carton: 2 PCS/CTN
Carton gross weight: 17.5kg
Application Scenarios
Suitable for power‑outage backup, outdoor operation power supply, night‑market stall electricity, emergency rescue, medical‑device power supply, household energy‑storage and other scenarios.
Delivery Time
Standard production lead‑time: 30 days; negotiable based on actual order requirements.
MOQ
We offer flexible order support according to customers’ actual demands.
Warranty & After‑Sales Service
Warranty period: 12‑month warranty
After‑sales policy:
1. If you have local‑repair capability, we provide free spare parts within the warranty period.
2. If local repair is unavailable, you can return defective products; we will arrange a new replacement together with you next order shipment
